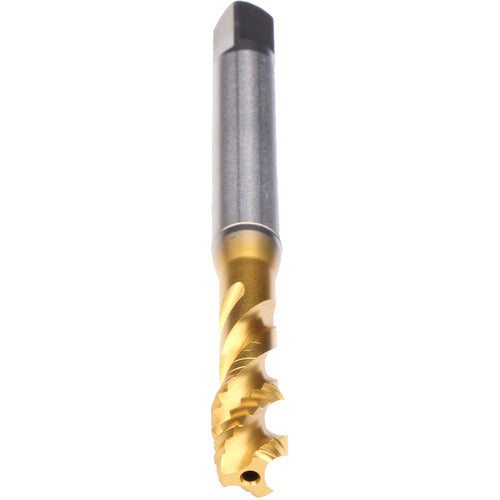

M5-TAP-ENORM Z-SPD-CLNT
Item #: ER453650F010050
Brand: EMUGE-FRANKEN
Model #: B3650F01.0050
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | M5 |
| Thread Tolerance Class (TCTR) | 6HX |
| Thread Pitch (TP) | 0.8 mm |
| Standard | DIN |
| Thread Standard | Metric |
| Tool Type | Rekord B-Speed |
| Overall Length (OAL) | 70 mm |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Coating | TiN-60 |
| Flute Helix Angle (FHA) | 45 Degrees |
| Flute Type | Spiral |
| Applicable Material | Universal Materials |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSS-E PM |
| Coolant Supply Property (CSP) | Coolant Thru |
