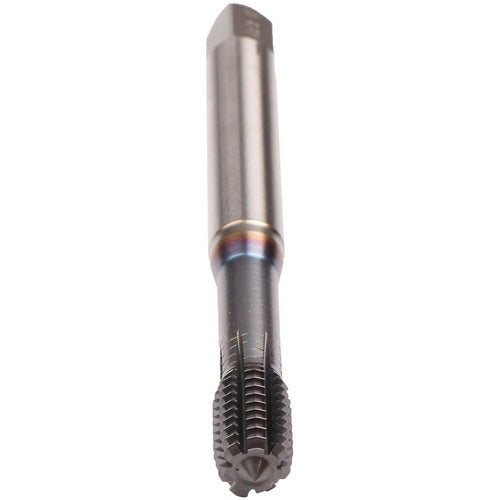

#3-56-TAP-FORM-CAST AL
Item #: ER4537Q2005036
Brand: EMUGE-FRANKEN
Model #: BU37Q200.5036
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | TiCN |
| Thread Diameter Size (TDZ) | #3 |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1.969″ |
| Threads per Inch (TPI) | 56 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 2BX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Thread Size | #3 - 56 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
