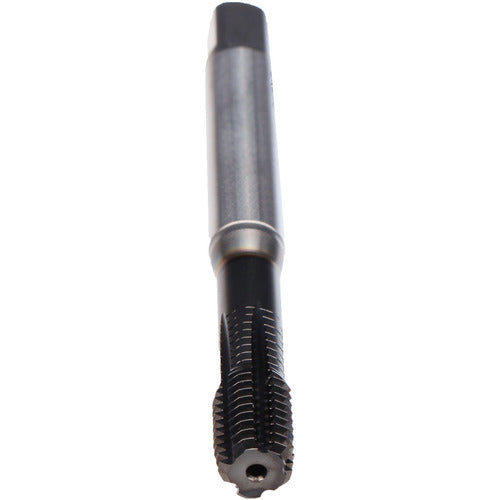

#2-64-TAP-FORM AL-PM-GLT8
Item #: ER4537Y7005035
Brand: EMUGE-FRANKEN
Model #: BU37Y700.5035
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Coating | GLT-8 |
| Thread Diameter Size (TDZ) | #2 |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1.772″ |
| Threads per Inch (TPI) | 64 |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Chamfer | 2P-3P |
| Thread Tolerance Class (TCTR) | 2BX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN | ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Thread Size | #2 - 64 |
| Applicable Material | Aluminum / Non-Ferrous Materials |
