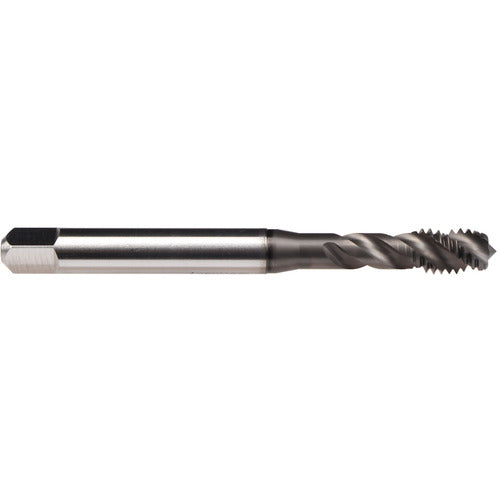

3/8-24 H11 ENORM VA-GLT-1
Item #: ER4550C3445045
Brand: EMUGE-FRANKEN
Model #: BU50C344.5045
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 3/8″ |
| Thread Tolerance Class (TCTR) | GH11 |
| Threads per Inch (TPI) | 24 |
| Standard | DIN | ANSI |
| Thread Standard | UNF |
| Tool Type | Enorm VA |
| Overall Length (OAL) | 3.937″ |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Coating | GLT-1 |
| Flute Helix Angle (FHA) | 35 Degrees |
| Flute Type | Spiral |
| Applicable Material | Steel | Stainless Steel |
| Cutting Direction (HAND) | Right Hand |
| Cutting Edge Material | HSSE |
| Coolant Supply Property (CSP) | External |
