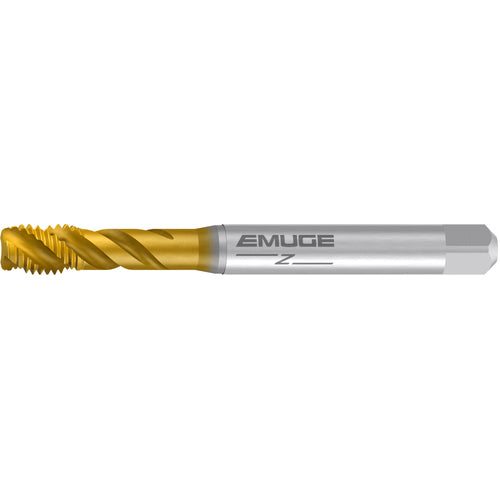

STI 5/16-24-ENORMZE-TIN3B
Item #: ER455137105640
Brand: EMUGE-FRANKEN
Model #: BU513710.5640
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | 1.5P-2P |
| Style | Bottoming |
| Coating | TiN |
| Thread Diameter Size (TDZ) | 5/16″ |
| Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3B |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Flute Helix Angle (FHA) | 45 Degrees |
| Threads per Inch (TPI) | 24 |
| Flute Type | Spiral |
| Overall Length (OAL) | 3.937″ |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Cutting Edge Material | HSSE |
| Standard | DIN | ANSI |
| Applicable Material | Stainless Steel |
