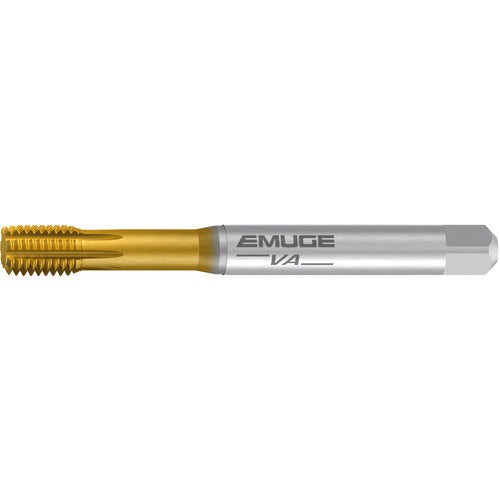

M4-INNOFORMVA/E-SS-TINT22
Item #: ER455296A000040
Brand: EMUGE-FRANKEN
Model #: B5296A00.0040
| Product Specifications | |
|---|---|
| Tool Type | Forming Tap |
| Thread Standard | Metric |
| Thread Diameter Size (TDZ) | M4 |
| Applicable Material | Stainless Steel |
| Thread Pitch (TP) | 0.7 mm |
| Coating | TiN |
| Overall Length (OAL) | 63 mm |
| Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 4.5 mm |
| Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | 6HX |
| Cutting Edge Material | HSSE-PM |
| Tap Standard | DIN |
| Cutting Direction (HAND) | Right Hand |
