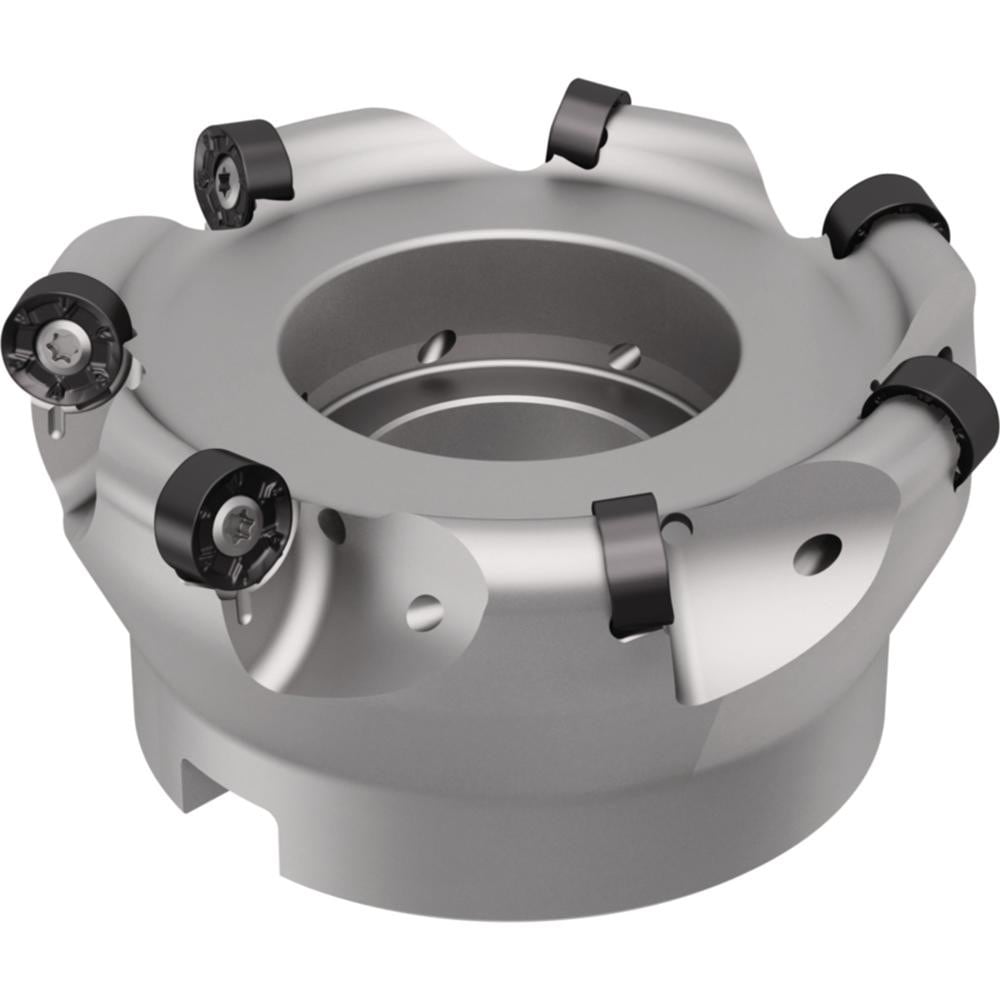

Brand: Widia / Part #: 4147577
Item #: 97191597
Brand: Widia
Model #: 4147577
Product Specifications
| Minimum Cutting Diameter (mm) | 88.00 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 3.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Compatible Insert Size Code | RN_J1204M0___ |
| Maximum Ramping Angle | 0.16 degree |
| Cutter Style | M200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Series | M200 |
| Hub Diameter (Decimal Inch) | 3.0709 |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Maximum RPM | 22150 |
| Tool Application | Profiling; Pocketing; Milling; Slotting; Face Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
