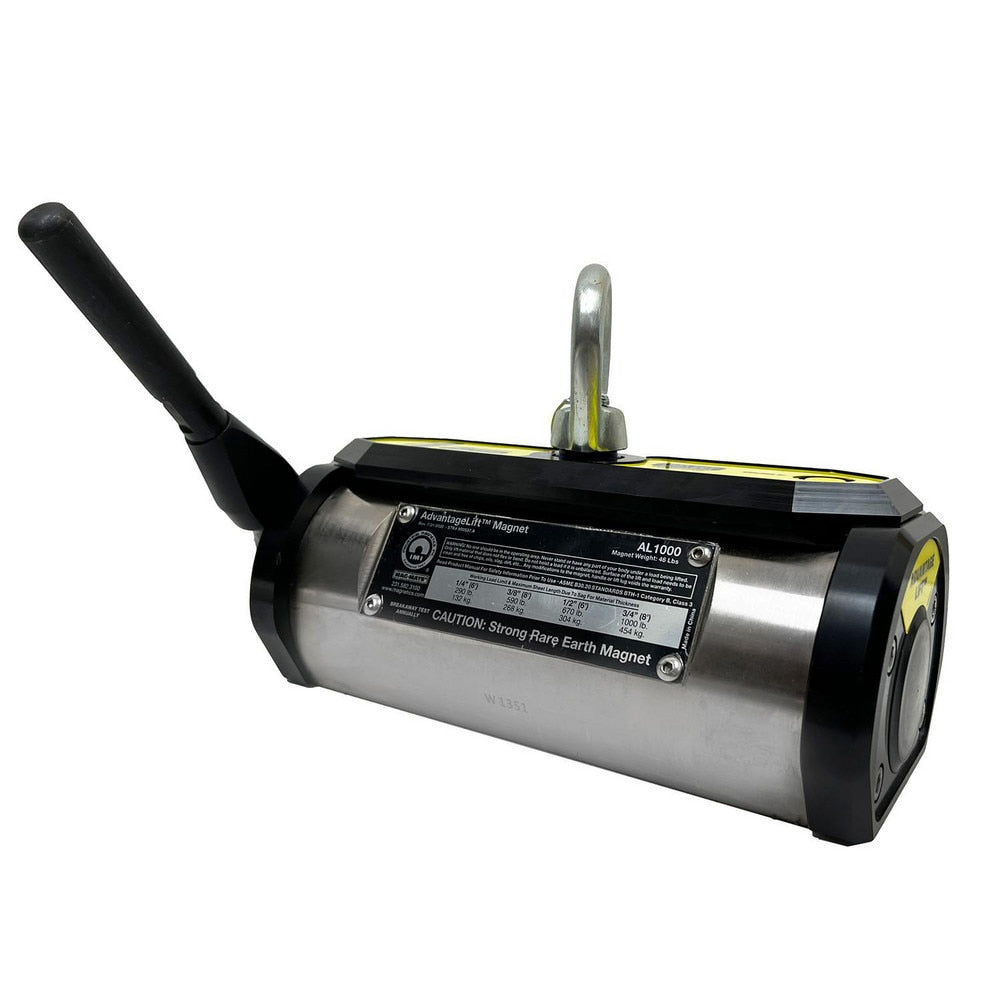

Brand: Mag-Mate / Part #: AL1000
Item #: 11829322
Brand: Mag-Mate
Model #: AL1000
Product Specifications
| Magnet Type | Rare Earth |
| Magnet Activation | Locking On/Off Handle |
| Height (Decimal Inch) | 10.040000 |
| Width (Inch) | 6-7/8 |
| Load Capacity Flat Objects (Lb.) | 1000.00 |
| Load Capacity Round Objects (RoundObjects) | 500.0 |
| Material Orientation | Horizontal |
| Permanent | Yes |
| Maximum Working Temperature | 180 ?F |
| Handle Length | 11.44 in |
| Bail Opening Height | 1.5 in |
| Bail Opening Width | 1.38 in |
| Number Of Poles | 2 |
| Features | Supports Custom Pole Shoes (1/4"-20 Tapped Holes, 1/2" Deep); "On/Off" Permanent Rare Earth Magnet; Handle Moves Laterally Instead of Pulling, Pressing Buttons or Levers; Locking Lifting Bail(s) Prevents Accidental Load Release During Lift; Recessed (Protected) Labels for Extended Life; Embedded RFID Chip; Swiveling Lift Bail(s); Operating; Lifts Flats Both Horizontally & Vertically with Vertical Lift Bail; 3:1 Design Factor |
| Standards | ASME B30.20 BTH-1 Design Category B Service Class 3 |
| Additional Information | Vertical Lift Lug with Lock-out Bail Option Available |
| For Use With | Steel Pipe; Steel Bar; Steel Plate; Steel Parts |
| Height (Inch) | 10 |
| Load Capacity (Lb. - 3 Decimals) | 1000.000 |
| Length (Inch) | 16-5/16 |
| Width (Decimal Inch - 4 Decimals) | 6.8800 |
| Length (Decimal Inch - 4 Decimals) | 16.3100 |
