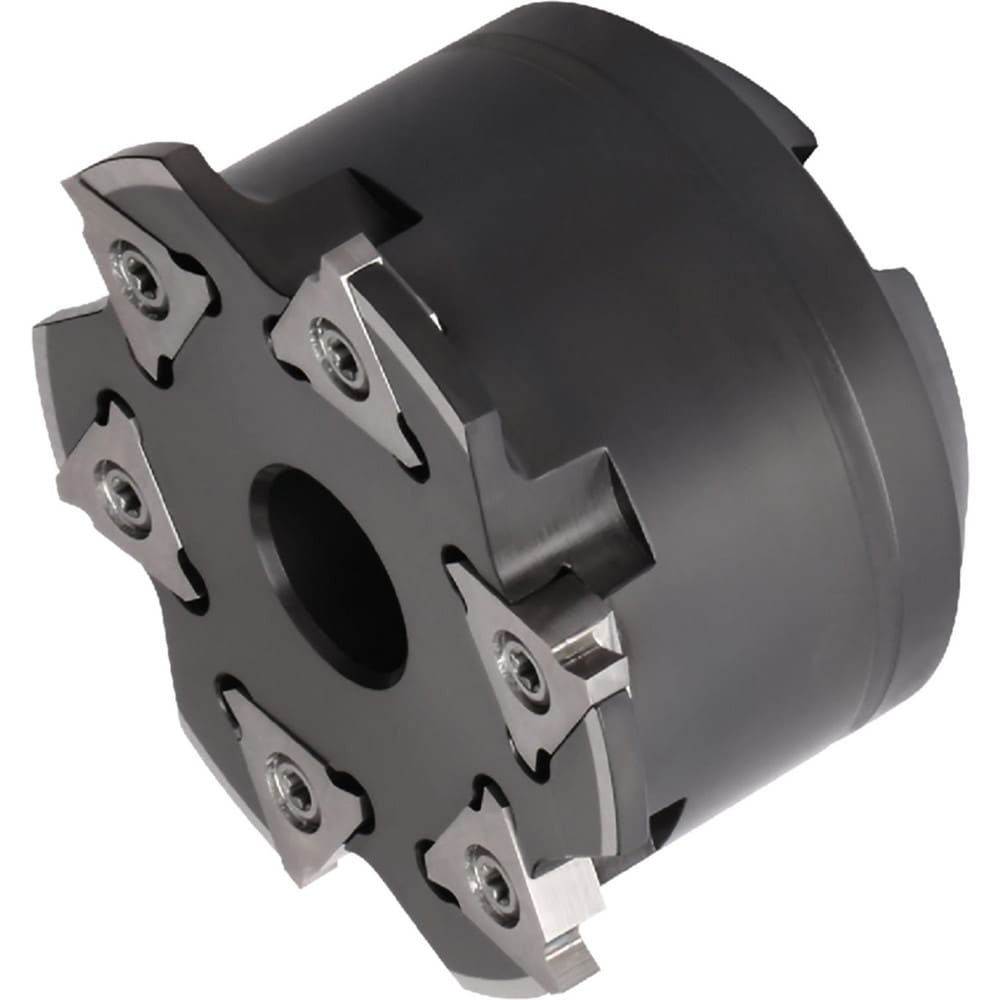

Brand: Widia / Part #: 2022622
Item #: 99761108
Brand: Widia
Model #: 2022622
Product Specifications
| Connection Type | Shell Mount |
| Cutting Width (mm) | 5.23 |
| Maximum Depth of Cut (mm) | 6.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 27.0000 |
| Cutter Diameter (mm) | 80.01 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 6 |
| Compatible Insert Style | TNAX |
| Compatible Insert Size Code | 2206 |
| Staggered Tooth | No |
| Tooth Type | Straight |
| Rake | Positive |
| Tool Material | Steel |
| Series | M94 |
| Toolholder Style | M94 |
| Hub Diameter (mm) | 68.000 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Minimum Cutting Width (Decimal Inch) | 0.2059 |
| Maximum Cutting Width (mm) | 5.23 |
| Minimum Cutting Diameter (mm) | 80.01 |
| Lead Angle | 90 |
| Maximum Body Diameter (mm) | 80.01 |
| Cutter Body Width (mm) | 132.84 |
| Weldon Flat | No |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Overall Length (mm) | 50.0000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Number Of Teeth | 6 |
| Coolant Through | No |
| Complete Insert Compatibility | TNAX |
| Coating/Finish | Black Oxide |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
