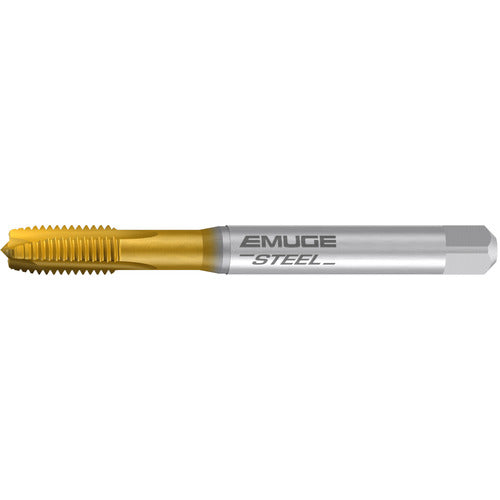

M8X0.75-Rek B-Steel-L-Tin
Item #: ER45B0208400250
Brand: EMUGE-FRANKEN
Model #: B0208400.0250
| Product Specifications | |
|---|---|
| Thread Standard | Metric |
| Standard | DIN |
| Thread Size | M8 × 1 |
| Tool Type | Rekord B-Steel-L |
| Thread Diameter Size (TDZ) | M8 |
| Applicable Material | Steel | Cast Iron |
| Thread Pitch (TP) | 1 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Thread Tolerance Class (TCTR) | ISO 2 | 6H |
| Flute Helix Angle (FHA) | 0 Degrees |
| Overall Length (OAL) | 90 mm |
| Cutting Direction (HAND) | Right Hand |
| Chamfer | 4P-5P |
| Coolant Supply Property (CSP) | External |
| Coating | TiN |
| Series/List # | 208400 |
| Cutting Edge Material | HSS-E |
