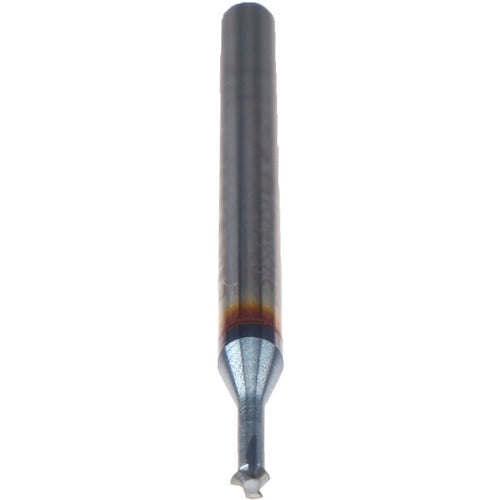

M3.5 - M4.5 ZGF Style HA - TICN Thread Mill
Item #: ER45G2537060035
Brand: EMUGE-FRANKEN
Model #: GF253706.0035
| Product Specifications | |
|---|---|
| Thread Size | M3.5-M4.5 |
| Coating | TiCN |
| Thread Pitch (TP) | 0.75 mm |
| Application | Tool for different thread sizes and pitches with correct thread profile |
| Thread Diameter Size (TDZ) | M3.5 - M4.5 |
| Applicable Material | Universal Materials |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Usable Length (LU) | 9.4 mm |
| Cutting Diameter (DC) | 2.78 mm |
| Series/List # | A223344 |
| Overall Length (OAL) | 42 mm |
| Length Group | 2xD |
| Flute Count (NOF) | 3 |
| Tool Type | Thread Mill |
| Shank Type | HA |
| Cutting Direction (HAND) | Right Hand | Left Hand |
