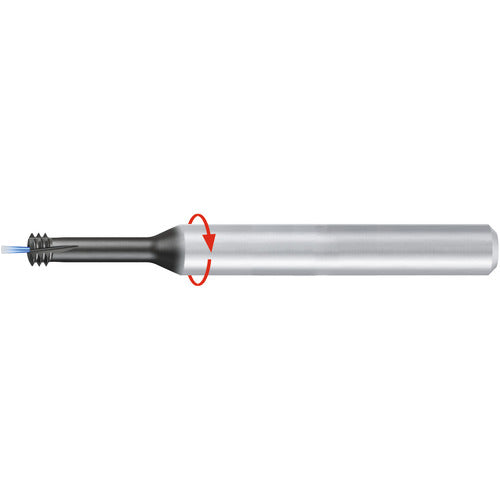

GF26A729.0060 THREAD MILL
Item #: ER45GF26A729060
Brand: EMUGE-FRANKEN
Model #: GF26A729.0060
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Coating | TiCN |
| Thread Pitch (TP) | 1 mm |
| Applicable Material | Super-Alloys / Titanium |
| Thread Standard | Metric |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Usable Length (LU) | 12.3 mm |
| Cutting Diameter (DC) | 4.8 mm |
| Length Group | 2xD |
| Overall Length (OAL) | 36 mm |
| Tool Type | Thread Mill |
| Flute Count (NOF) | 4 |
| Cutting Direction (HAND) | Left Hand |
| Shank Type | HA |
