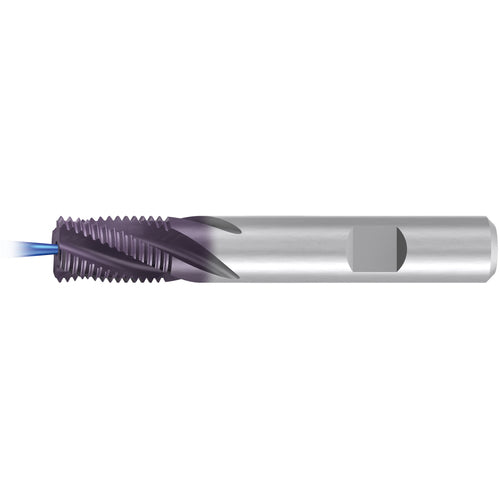

GFR35106.0060 THREAD MILL
Item #: ER45GFR3516060
Brand: EMUGE-FRANKEN
Model #: GFR35106.0060
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Coating | TiCN |
| Thread Pitch (TP) | 1 mm |
| Applicable Material | Universal Materials |
| Thread Standard | Metric |
| Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.189″ |
| Flute Type | Spiral |
| Overall Length (OAL) | 2-1/2″ |
| Length Group | 2xD |
| Flute Count (NOF) | 3 |
| Tool Type | Thread Mill |
| Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.491″ |
| Shank Type | HB |
| Cutting Direction (HAND) | Right Hand | Left Hand |
