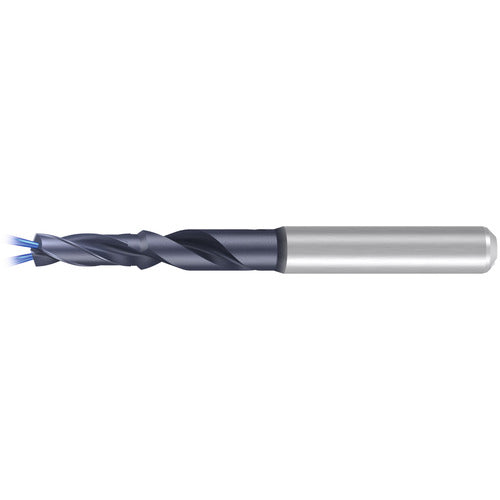

6.8 mm Dia. × 10 mm Shank × 46 mm Flute Length × 89 mm OAL, TiAlN-T14, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: ER45TG203344068
Brand: EMUGE-FRANKEN
Model #: TG203344.068024
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 6.8 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Decimal Equivalent | 0.2677″ |
| Number of Steps | 1 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.8 mm |
| Cutting Edge Material | 2 |
| Cutting Diameter Minimum (DCN) | 6.8 mm |
| Coating | TiAlN-T14 |
| Length Chip Flute (LCF) | 46 mm |
| Shank Standard | HA |
| Shank Size (SS) | 10 mm |
| Shank Type | Cylindrical |
| Overall Length (OAL) | 89 mm |
| Step Diameter Length (SDL) | 6.8 mm |
| Point Angle (SIG) | 140 Degrees |
| Tool Type | Carbide EF Step Drill |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Right Hand |
