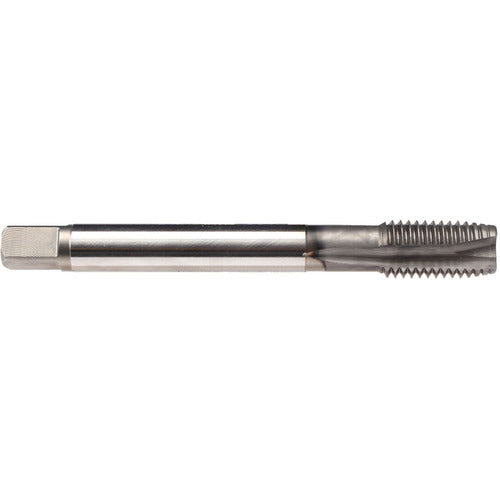

STI 3/4-16-TAP-REK B-VA
Item #: ER45U203105646
Brand: EMUGE-FRANKEN
Model #: CU20C310.5646
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Chamfer | 4P-5P |
| Style | Plug |
| Coating | GLT-1 |
| Thread Diameter Size (TDZ) | 3/4″ |
| Coolant Supply Property (CSP) | External |
| Thread Tolerance Class (TCTR) | 3B |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Flute Helix Angle (FHA) | 0 Degrees |
| Threads per Inch (TPI) | 16 |
| Measurement Type | Inch |
| Overall Length (OAL) | 4.921″ |
| Connection Diameter Machine Side (DCONMS) | 0.652″ |
| Cutting Edge Material | HSSE |
| Standard | DIN | ANSI |
| Flute Count (NOF) | 4 |
| Series/List # | U20C310 |
| Applicable Material | Steel | Stainless Steel |
| Thread Size | 3/4″ - 16 |
