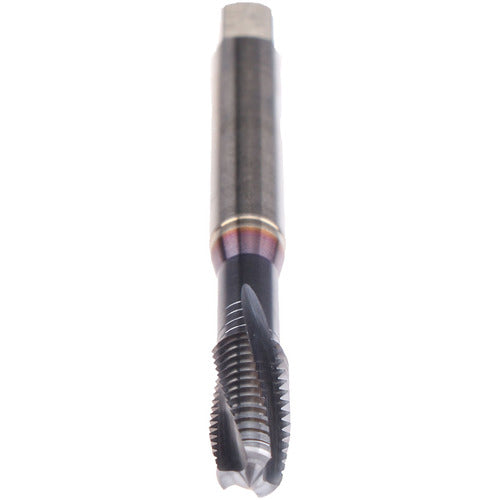

LK 12-24 TITANIUM-PLUG
Item #: ER45U3096005661
Brand: EMUGE-FRANKEN
Model #: BU309600.5661
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 12″ |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 24 |
| Tool Type | Rekord C-TI |
| Thread Standard | UNC |
| Chamfer | 3.5P-5P |
| Overall Length (OAL) | 3.15″ |
| Coating | TiCN |
| Usable Length (LU) | 29 mm |
| Flute Type | Spiral |
| Connection Diameter Machine Side (DCONMS) | 0.22″ |
| Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 15 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Super-Alloys / Titanium |
| Measurement Type | Inch |
| Cutting Edge Material | HSSE |
| Series/List # | U309600 |
| Thread Tolerance Class (TCTR) | BT |
