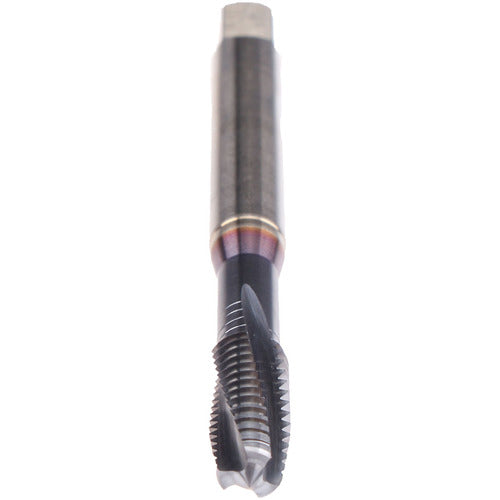

2-56-TAP-REK C-TI-3B-TICN
Item #: ER45U3096115001
Brand: EMUGE-FRANKEN
Model #: BU309611.5001
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #2 |
| Thread Tolerance Class (TCTR) | 3BX |
| Threads per Inch (TPI) | 56 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Rekord C-TI |
| Overall Length (OAL) | 1.772″ |
| Chamfer | 3.5P-5P |
| Usable Length (LU) | 12 mm |
| Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Flute Type | Spiral |
| Flute Count (NOF) | 2 |
| Cutting Direction (HAND) | Left Hand |
| Flute Helix Angle (FHA) | 15 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Super-Alloys / Titanium |
| Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSE |
| Series/List # | U309611 |
