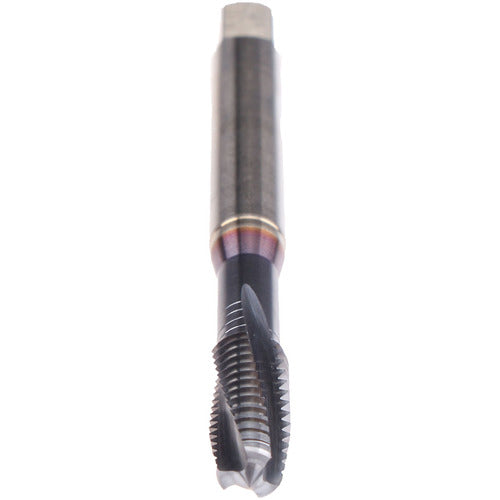

0-80-TAP-REK C-TI-3B-TICN
Item #: ER45U3096115033
Brand: EMUGE-FRANKEN
Model #: BU309611.5033
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | #0 |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 80 |
| Tool Type | Rekord C-TI |
| Thread Standard | UNF |
| Chamfer | 4P-5P |
| Overall Length (OAL) | 2.205″ |
| Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 0.141″ |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Left Hand |
| Applicable Material | Super-Alloys / Titanium |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Wire Gauge |
| Thread Tolerance Class (TCTR) | 3BX |
| Series/List # | U309611 |
