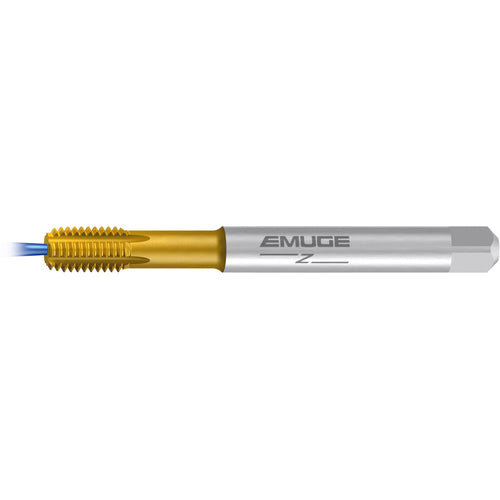

BU44Z800.5045 TAP
Item #: ER45U44Z8005045
Brand: EMUGE-FRANKEN
Model #: BU44Z800.5045
| Product Specifications | |
|---|---|
| Tool Type | Form Tap |
| Coating | TiN |
| Thread Diameter Size (TDZ) | 3/8″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.937″ |
| Threads per Inch (TPI) | 24 |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Chamfer | 1.5P-2P |
| Thread Tolerance Class (TCTR) | 2BX |
| Cutting Edge Material | Carbide |
| Tap Standard | DIN | ANSI |
| Cutting Direction (HAND) | Right Hand |
| Thread Standard | UNF |
| Thread Size | 3/8″ - 24 |
| Applicable Material | Steel |
