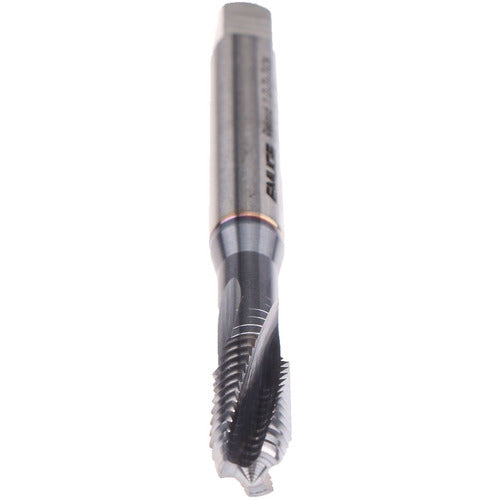

7/8-9-TAP-REK D-TI3B-TICN
Item #: ER45U4596115017
Brand: EMUGE-FRANKEN
Model #: CU459611.5017
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 7/8″ |
| Thread Tolerance Class (TCTR) | 3BX |
| Threads per Inch (TPI) | 9 |
| Standard | DIN | ANSI |
| Thread Standard | UNC |
| Tool Type | Rekord D-TI |
| Overall Length (OAL) | 5.512″ |
| Chamfer | 2P-3P |
| Connection Diameter Machine Side (DCONMS) | 0.697″ |
| Coating | TiCN |
| Flute Count (NOF) | 3 |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 15 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Super-Alloys / Titanium |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| Measurement Type | Inch |
