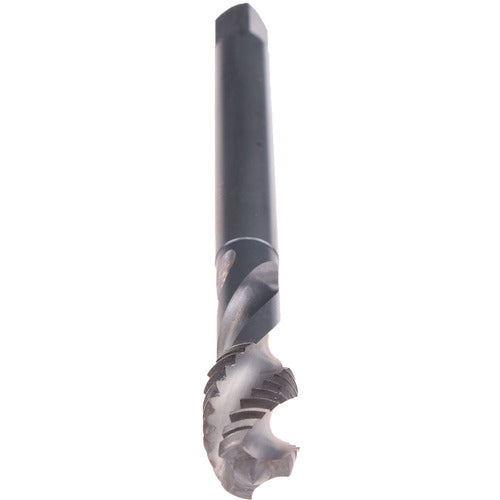

2 3/4-8 TAP-ENORM VA-BLND
Item #: ER45U5032005267
Brand: EMUGE-FRANKEN
Model #: CU503200.5267
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 2-3/4″ |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 8 |
| Tool Type | Enorm VA |
| Thread Standard | UN |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 10.827″ |
| Coating | NE2 |
| Connection Diameter Machine Side (DCONMS) | 2.1″ |
| Flute Type | Spiral |
| Flute Count (NOF) | 8 |
| Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 35 Degrees |
| Coolant Supply Property (CSP) | External |
| Applicable Material | Steel | Stainless Steel |
| Measurement Type | Inch |
| Cutting Edge Material | HSSE |
| Series/List # | U503200 |
| Thread Tolerance Class (TCTR) | 2B |
