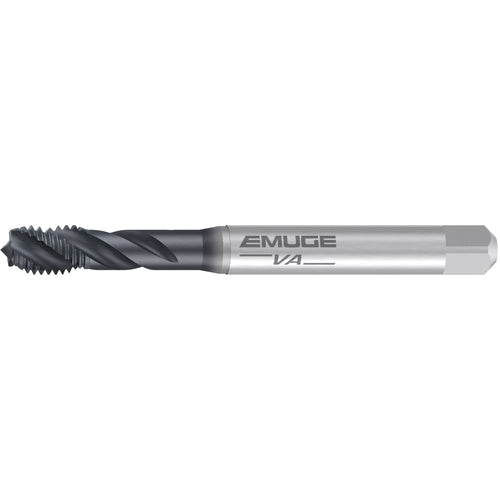

Cu50C310.5255 Va Tap
Item #: ER45U50C3105255
Brand: EMUGE-FRANKEN
Model #: CU50C310.5255
| Product Specifications | |
|---|---|
| Thread Diameter Size (TDZ) | 1-5/8″ |
| Standard | DIN | ANSI |
| Threads per Inch (TPI) | 8 |
| Tool Type | Enorm VA |
| Thread Standard | UN |
| Chamfer | 2P-3P |
| Overall Length (OAL) | 7.874″ |
| Coating | GLT-1 |
| Connection Diameter Machine Side (DCONMS) | 1.305″ |
| Flute Type | Spiral |
| Flute Helix Angle (FHA) | 35 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Applicable Material | Steel | Stainless Steel |
| Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE |
| ToolTypeName | Spiral Flute Taps |
| Thread Tolerance Class (TCTR) | 3B |
