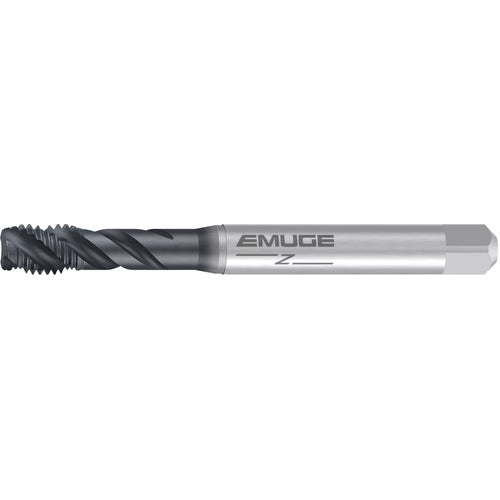

STI 5/16-24-TAP-ENORM ZE
Item #: ER45U514105640
Brand: EMUGE-FRANKEN
Model #: BU51C410.5640
| Product Specifications | |
|---|---|
| Tool Type | STI Tap |
| Coating | GLT-1 |
| Style | Bottoming |
| Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 5/16″ |
| Cutting Direction (HAND) | Right Hand |
| Thread Tolerance Class (TCTR) | 3B |
| Flute Helix Angle (FHA) | 45 Degrees |
| Thread Standard | UNF |
| Flute Type | Spiral |
| Threads per Inch (TPI) | 24 |
| Usable Length (LU) | 39 mm |
| Overall Length (OAL) | 3.937″ |
| Measurement Type | Inch |
| Cutting Edge Material | HSSE |
| Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Flute Count (NOF) | 3 |
| Standard | DIN | ANSI |
| Applicable Material | Steel | Stainless Steel |
| Series/List # | U51C410 |
| Chamfer | 1.5P-2P |
| Thread Size | 5/16″ - 24 |
