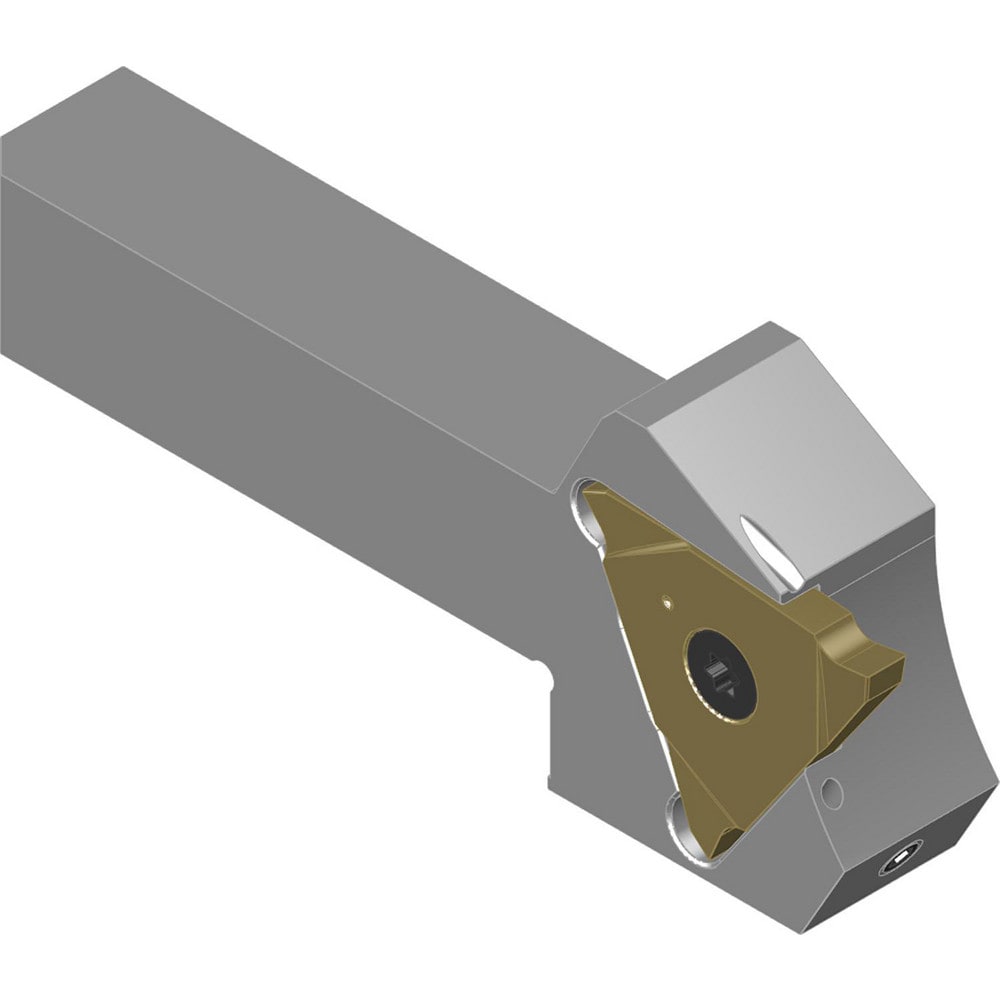

Brand: Arno / Part #: 116030

Brand: Arno / Part #: 116030


Item #: 02013290
Brand: Arno
Model #: 116030

Product Specifications

Internal or External External
Toolholder Type External Grooving
Insert Seat Size 14.00
Hand of Holder Left Hand
Cutting Direction Neutral
Maximum Depth of Cut (mm) 6.50
Minimum Groove Width (mm) 2.00
Maximum Groove Width (mm) 4.00
Toolholder Style HTE 3 Edge Grooving
Insert Holding Method Screw
Compatible Insert Size Code TE14F?
Shank Width/Diameter (mm) 12.00
Shank Height (mm) 12.00
Series HTE Grooving for AFC
Shank Length (mm) 45.000
Overall Length (mm) 70.0000
Multi-use Tool Yes
Cutting Tool Application Grooving
Head Length (mm) 25.00
Maximum Groove Outside Diameter (mm) 44.00
Toolholder Material Alloy Steel
Insert Hand Left Hand
Coolant Through Yes
$ 563.39
