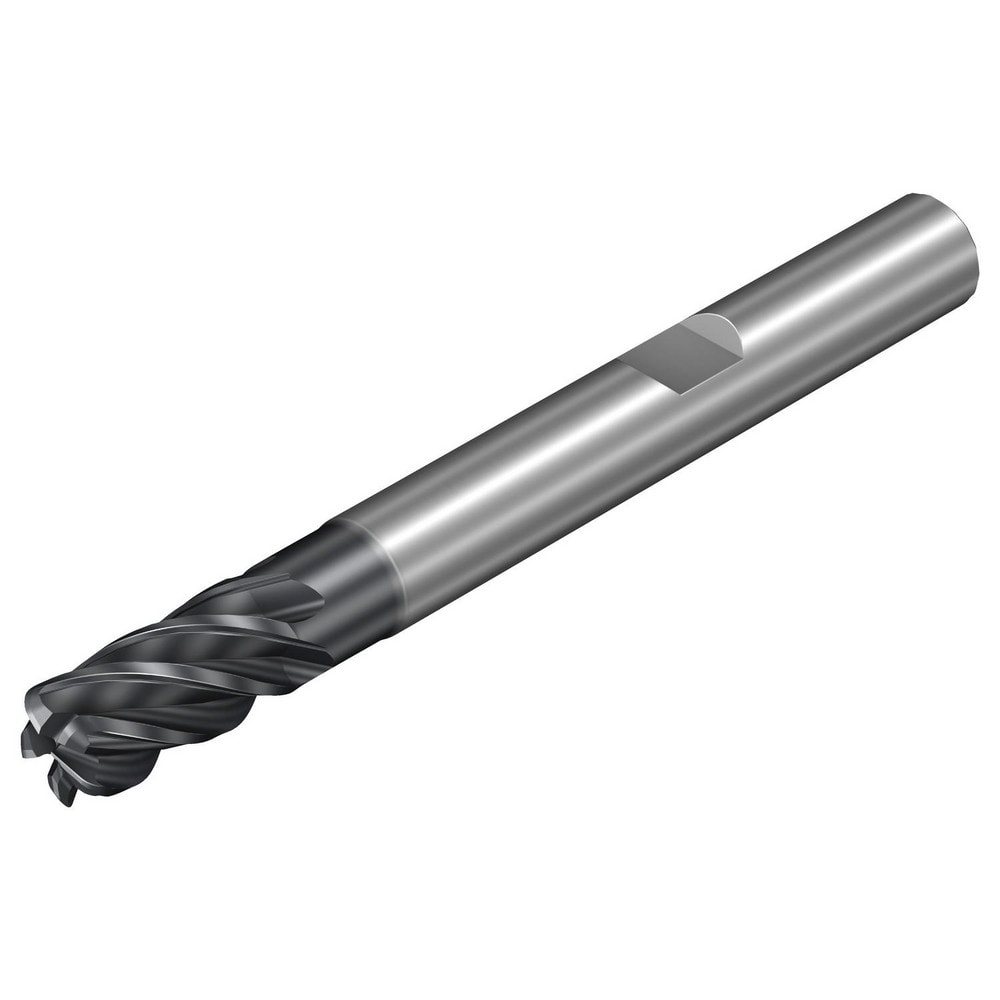

Brand: Sandvik Coromant / Part #: 8213577
Item #: 97430409
Brand: Sandvik Coromant
Model #: 8213577
Product Specifications
| Mill Diameter (mm) | 16.00 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Coating/Finish | AlCrN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Single Or Double End | Single |
| Overall Length (mm) | 100.0000 |
| Length of Cut (mm) | 32.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Flute Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.9370 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2598 |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Shank Diameter (mm) | 16.0000 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Series | CoroMill Dura |
| Coating Classification | PVD |
| Manufacturers Catalog Number | 1K335-1600-050-XD 1730 |
