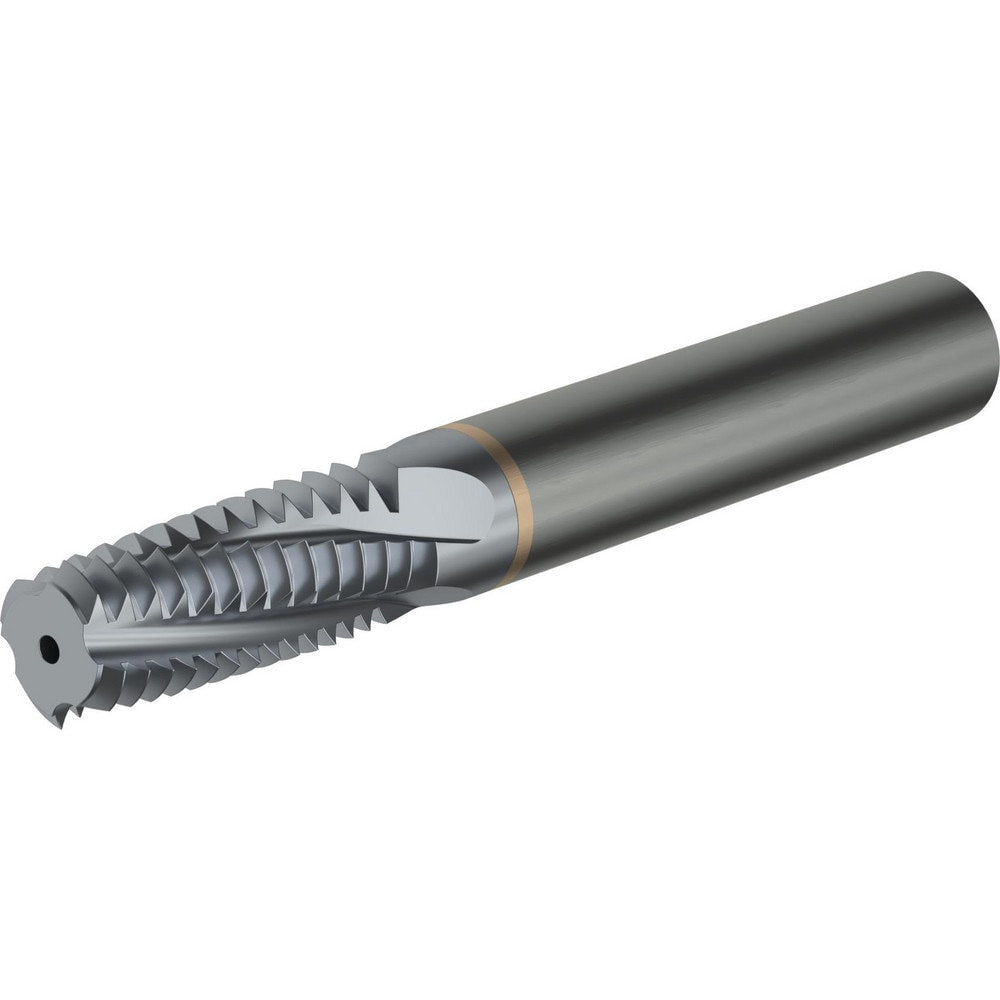

Brand: Vargus / Part #: 049-00029
Item #: 99180093
Brand: Vargus
Model #: 049-00029
Product Specifications
| Material | Carbide |
| Thread Size (Inch) | 1/4-20 |
| Thread Depth (Decimal Inch) | 0.523 |
| Thread Type | Internal |
| Shank Diameter (mm) | 5.0000 |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Cutting Diameter (mm) | 4.90 |
| Cutting Diameter (Decimal Inch) | 0.1929 |
| Length of Cut (mm) | 13.3000 |
| Minimum Nominal Diameter (Inch) | 1/4 |
| Shank Length (Decimal Inch) | 1.1330 |
| Shank Length (mm) | 22.400 |
| Overall Length (mm) | 41.0000 |
| Overall Length (Decimal Inch) | 1.6142 |
| Number Of Flutes | 4 |
| Coating/Finish | TiCN |
| Coolant Through | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.5236 |
| Thread Length (mm) | 13.30 |
| Thread Length (Decimal Inch) | 1.9090 |
