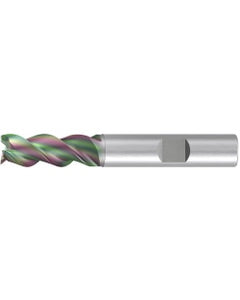

Chamfer End Mill; 3 mm Dia. × 7 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; Carbide ; GLT ; Series 2545K
Item #: ER452545K003
Brand: EMUGE-FRANKEN
Model #: 2545K.003
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Application | | Soft Materials Finishing | |
| Depth of Cut Maximum (APMX) | 7 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 57 mm |
| Decimal Equivalent | 0.1181″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Metric |
| Coating | GLT |
| Series/List # | 2545K |
| Flute Count (NOF) | 3 |
