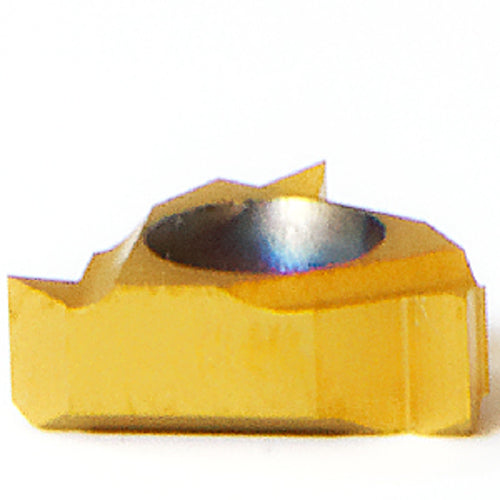

11 ER A55 MXC THREADING INSERT
Item #: FF5830915
Brand: Carmex
Model #: 20300045
| Product Specifications | |
|---|---|
| Thread Standard | 55-DEG PART PROF |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 11 mm |
| Applicable Material | Cast Iron|Stainless Steel|Untreated Alloy Steel (<30HRc) |
| Thread Pitch (TP) | 1.75 mm - 1.5 mm |
| Insert Style | THREADING INSERTS - 11 |
| Threads per Inch (TPI) | 16-48 |
| Cutting Direction (HAND) | Right Hand |
| Grade | MXC |
| Cutting Item Count (CICT) | 3 |
| Coating | TiN |
| Measurement Type | Inch|Metric |
| Cutting Edge Material | Carbide |
