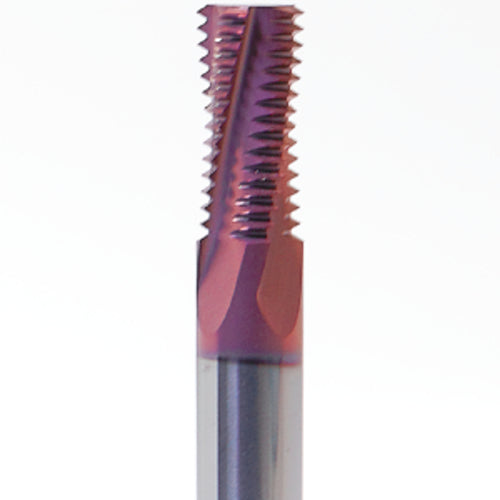

MT 1010 D26 18 UN MT7
Item #: FF5840200082
Brand: Carmex
Model #: 40200082
| Product Specifications | |
|---|---|
| Thread Size | 1(1/8) - 1(5/8)|9/16 - 5/8 |
| Coating | TiAlN |
| Threads per Inch (TPI) | 18 |
| Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | UN |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 10 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 26.1 mm |
| Series/List # | MT |
| Overall Length (OAL) | 2.9″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
