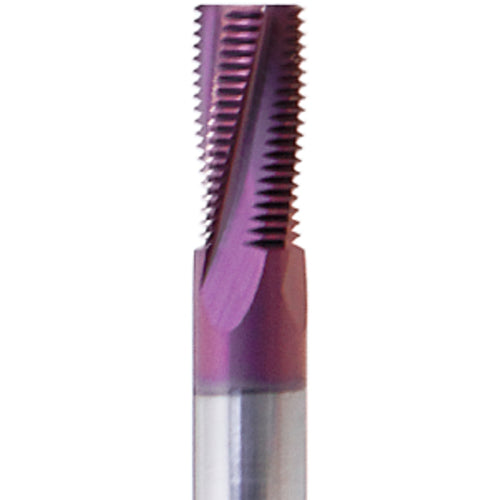

EMT 1010 D20 24 UNJ MT7
Item #: FF5840200251
Brand: Carmex
Model #: 40200251
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 24 |
| Application | EXTERNAL MILL THREAD |
| Thread Standard | UNJ (UNJC,UNJEF,UNJF,UNJS) |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 10 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 20.6 mm |
| Series/List # | EMT |
| Overall Length (OAL) | 2.8″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN |
