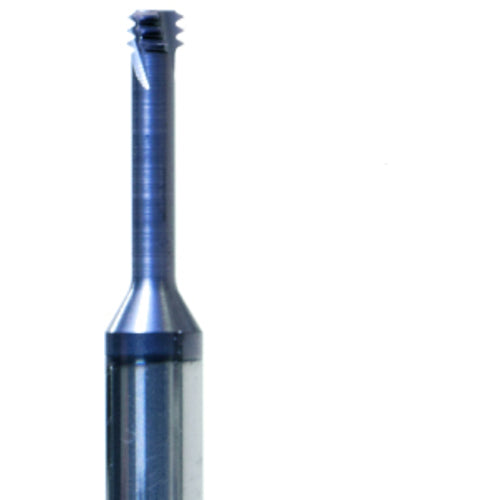

MTSH 06038 C16 0.8 ISO
Item #: FF5840300112
Brand: Carmex
Model #: 40300112
| Product Specifications | |
|---|---|
| Thread Size | 3xD |
| Coating | Advanced PVD 3x Ultra-Fine Sub-Micron Coated |
| Thread Pitch (TP) | 0.8 mm |
| Application | MILL THREAD SOLID CARBIDE HARDCUT |
| Thread Standard | ISO |
| Applicable Material | Cast Iron |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.8 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 16 mm |
| Series/List # | MTSH |
| Overall Length (OAL) | 58 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT9 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
