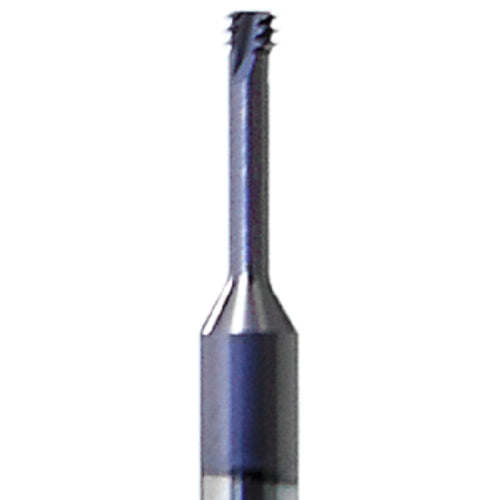

MTS 06035 C10 24 UN MT7
Item #: FF5840300121
Brand: Carmex
Model #: 40300121
| Product Specifications | |
|---|---|
| Thread Size | 10|12 |
| Coating | TiAlN |
| Threads per Inch (TPI) | 24 |
| Application | MINI MILL THREAD |
| Thread Standard | UN |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.5 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 10.6 mm |
| Series/List # | MTS |
| Overall Length (OAL) | 58 mm |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
