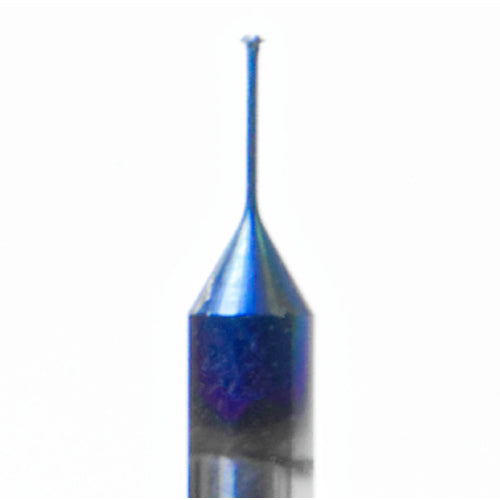

MTI 03016 C9 56 UN MT11
Item #: FF5840300296
Brand: Carmex
Model #: 40300296
| Product Specifications | |
|---|---|
| Thread Size | 2|3 |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Threads per Inch (TPI) | 56 |
| Application | MINI MILL THREAD |
| Thread Standard | UN |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 1.7 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 8.9 mm |
| Series/List # | MTI |
| Overall Length (OAL) | 1.5″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT11 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
