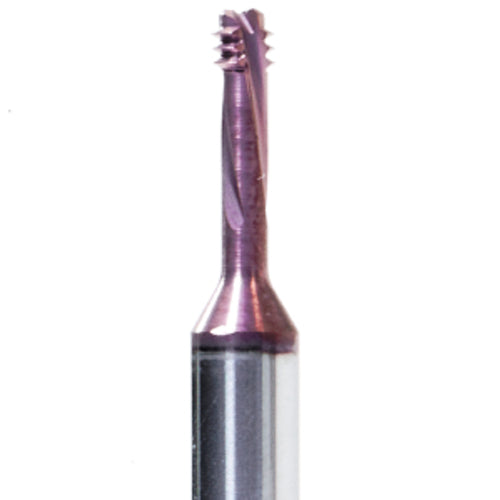

DMT 06038 C14 32 UN D MT7
Item #: FF5840300317
Brand: Carmex
Model #: 40300317
| Product Specifications | |
|---|---|
| Thread Size | 2.5xD1|10 |
| Application | DEEP MILL THREAD |
| Threads per Inch (TPI) | 32 |
| Applicable Material | General Purpose |
| Thread Standard | UN |
| Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.8 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 14 mm |
| Series/List # | DMT |
| Overall Length (OAL) | 2.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN |
