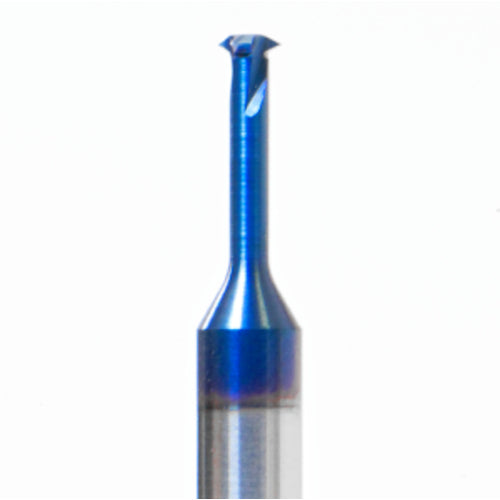

MTI 0604 C12 A60 MT11
Item #: FF5840300329
Brand: Carmex
Model #: 40300329
| Product Specifications | |
|---|---|
| Thread Size | 12-28|M5.0 × 0.8|M6.0 × 1 |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Thread Pitch (TP) | 0.5 mm - 1 mm |
| Application | MINI MILL THREAD |
| Threads per Inch (TPI) | 24-24 |
| Applicable Material | General Purpose |
| Thread Standard | 60-DEG PART PROF |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Position | Internal |
| Cutting Diameter (DC) | 4 mm |
| Series/List # | MTI |
| Functional Length (LF) | 12.4 mm |
| Measurement Type | Metric |
| Overall Length (OAL) | 2.3″ |
| Grade | MT11 |
| Flute Count (NOF) | 3 |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coolant Supply Property (CSP) | No |
