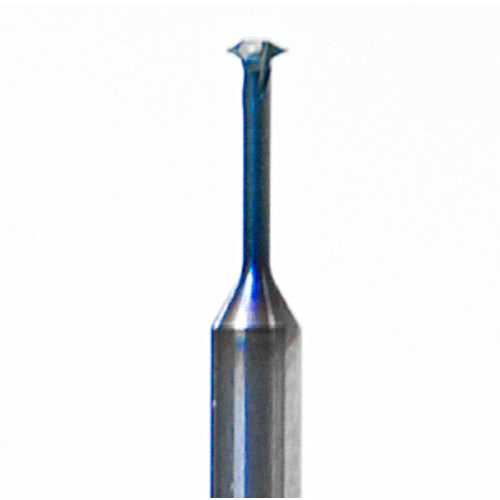

MTI 03023 C7 A55 MT11
Item #: FF5840300337
Brand: Carmex
Model #: 40300337
| Product Specifications | |
|---|---|
| Threads per Inch (TPI) | 32-40 |
| Application | MINI MILL THREAD |
| Thread Standard | 55-DEG PART PROF |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 2.3 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 7.1 mm |
| Series/List # | MTI |
| Overall Length (OAL) | 1.5″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT11 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | PVD 3x Layer Sub-Micron Coated |
