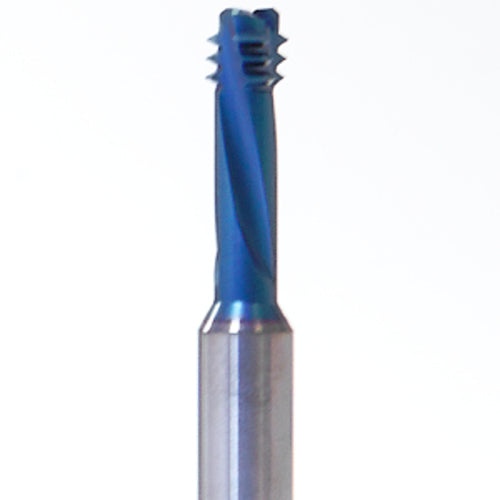

DMTH 10092 C30 13 UN MT11
Item #: FF5840300351
Brand: Carmex
Model #: 40300351
| Product Specifications | |
|---|---|
| Thread Size | 2xD1|1/2 |
| Application | DEEP MILL THREAD HARDCUT |
| Threads per Inch (TPI) | 13 |
| Applicable Material | General Purpose |
| Thread Standard | UN |
| Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 9.2 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 30 mm |
| Series/List # | DMTH |
| Overall Length (OAL) | 2.9″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT11 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | PVD 3x Layer Sub-Micron Coated |
