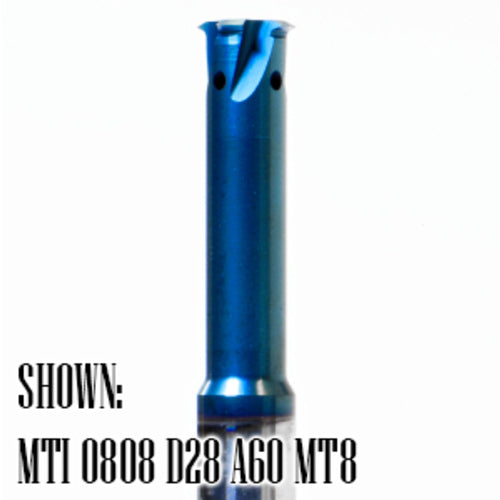

MTI 10086 D25 2 TR MT8
Item #: FF5840300388
Brand: Carmex
Model #: 40300388
| Product Specifications | |
|---|---|
| Thread Size | Tr12 × 2|Tr14 × 2 |
| Coating | TiAlN |
| Thread Pitch (TP) | 2 mm |
| Application | MINI MILL THREAD |
| Thread Standard | TRAPEZ (DIN 103) |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8.6 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 24.9 mm |
| Series/List # | MTI |
| Overall Length (OAL) | 2.9″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | MT8 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
