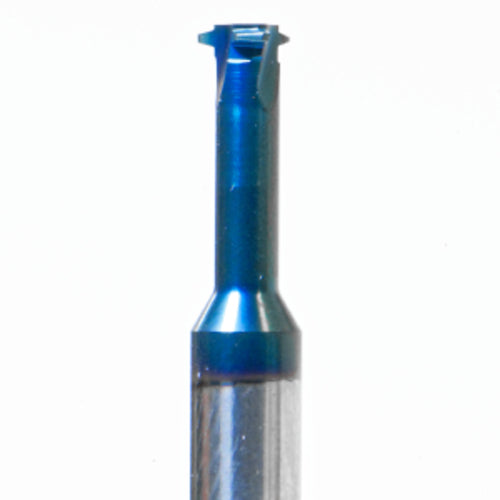

MTI 06055 C13 1.5 TR MT8
Item #: FF5840300389
Brand: Carmex
Model #: 40300389
| Product Specifications | |
|---|---|
| Thread Size | Tr08 × 1.5|Tr09 × 1.5 |
| Coating | TiAlN |
| Thread Pitch (TP) | 1.5 mm |
| Application | MINI MILL THREAD |
| Thread Standard | TRAPEZ (DIN 103) |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5.5 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 13.5 mm |
| Series/List # | MTI |
| Overall Length (OAL) | 2.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT8 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
