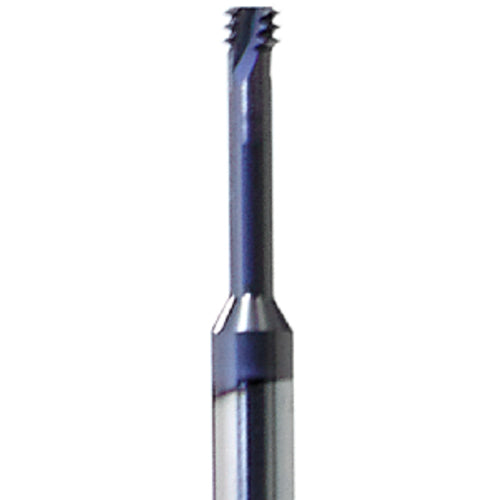

MTS 06049 D12 0.75 ISO
Item #: FF5840300429
Brand: Carmex
Model #: 40300429
| Product Specifications | |
|---|---|
| Thread Size | 2xD1|M6 |
| Coating | TiAlN |
| Thread Pitch (TP) | 0.75 mm |
| Application | MINI MILL THREAD |
| Thread Standard | ISO |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 4.9 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 12.7 mm |
| Series/List # | MTS |
| Overall Length (OAL) | 2.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | No |
| Cutting Direction (HAND) | Left Hand|Right Hand |
