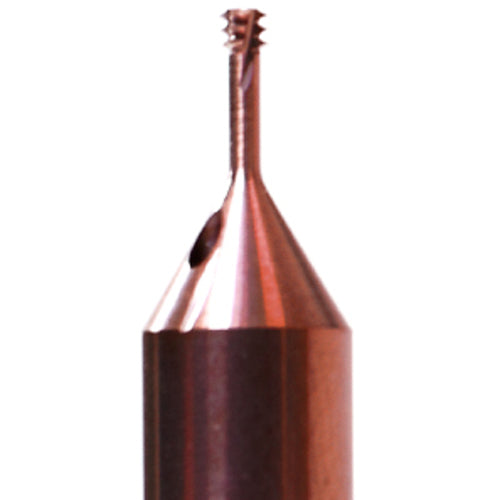

MTSB 06016 C4 0.4 ISO MT7
Item #: FF5840300439
Brand: Carmex
Model #: 40300439
| Product Specifications | |
|---|---|
| Thread Size | 2xD1|M2 |
| Coating | TiAlN |
| Thread Pitch (TP) | 0.4 mm |
| Application | MINI MILL THREAD COOLANT |
| Thread Standard | ISO |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 1.5 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 4.3 mm |
| Series/List # | MTSB |
| Overall Length (OAL) | 2.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Left Hand|Right Hand |
