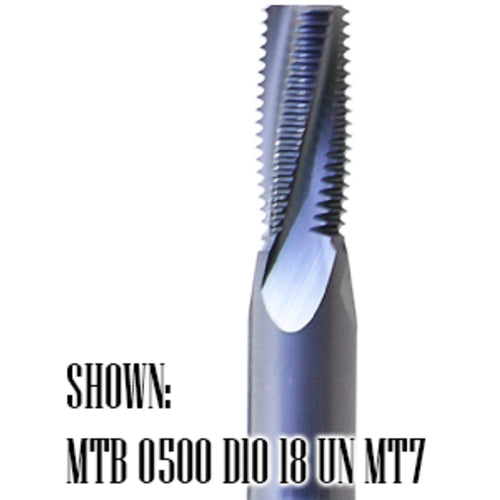

MTB 06056 C14 18 UN MT7
Item #: FF5840400109
Brand: Carmex
Model #: 40400109
| Product Specifications | |
|---|---|
| Thread Size | 5/16 |
| Coating | TiAlN |
| Threads per Inch (TPI) | 18 |
| Application | MILL THREAD SOLID CARBIDE |
| Thread Standard | UN |
| Applicable Material | General Purpose |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5.6 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 14.8 mm |
| Series/List # | MTB |
| Overall Length (OAL) | 2.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Left Hand|Right Hand |
