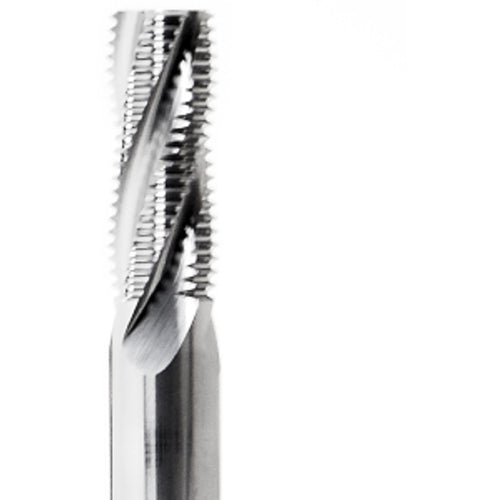

AMT 1212 D30 18 UN K20
Item #: FF5840400189
Brand: Carmex
Model #: 40400189
| Product Specifications | |
|---|---|
| Thread Size | 1(1/8) - 1(5/8)|9/16 - 5/8 |
| Coating | Uncoated |
| Threads per Inch (TPI) | 18 |
| Application | ALUMINIUM MILL THREAD |
| Thread Standard | UN |
| Applicable Material | Aluminum|Cast Iron|Non-Ferrous Metals |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 12 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 30.3 mm |
| Series/List # | AMT |
| Overall Length (OAL) | 3.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | K20 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Left Hand|Right Hand |
