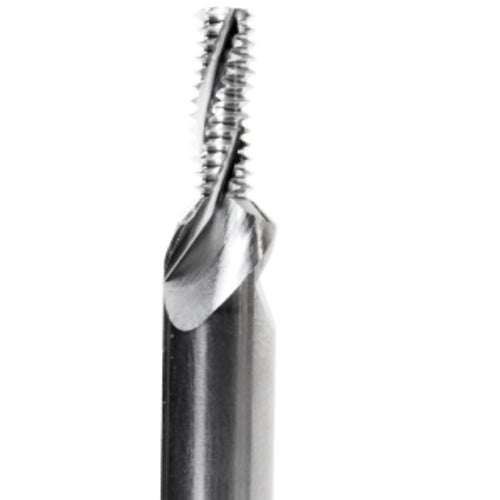

AMT 08048 C13 1.0 ISO-C
Item #: FF5840400193
Brand: Carmex
Model #: 40400193
| Product Specifications | |
|---|---|
| Thread Size | M6 |
| Application | ALUMINIUM MILL THREAD |
| Thread Pitch (TP) | 1 mm |
| Applicable Material | Aluminum|Cast Iron|Non-Ferrous Metals |
| Thread Standard | ISO |
| Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 4.8 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 13.5 mm |
| Series/List # | AMT |
| Overall Length (OAL) | 2.5″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 3 |
| Grade | K20 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | Uncoated |
