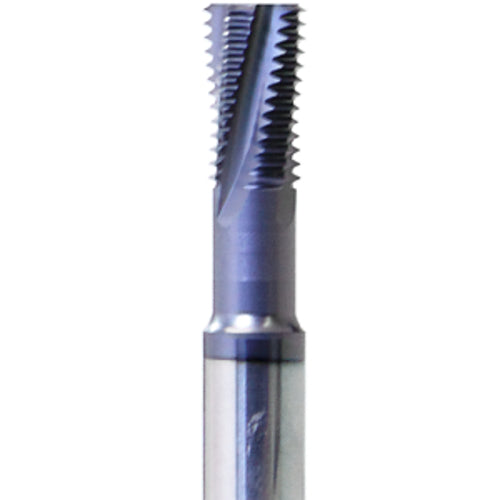

MTQ 1010 D30 1.5 ISO MT7
Item #: FF5840500005
Brand: Carmex
Model #: 40500005
| Product Specifications | |
|---|---|
| Thread Size | 13 |
| Application | MILL THREAD SOLID CARBIDE |
| Thread Pitch (TP) | 1.5 mm |
| Applicable Material | General Purpose |
| Thread Standard | ISO |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Position | Internal |
| Cutting Diameter (DC) | 10 mm |
| Usable Length (LU) | 30 mm |
| Functional Length (LF) | 18 mm |
| Series/List # | MTQ |
| Overall Length (OAL) | 2.9″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Grade | MT7 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Direction (HAND) | Left Hand|Right Hand |
| Coating | TiAlN |
