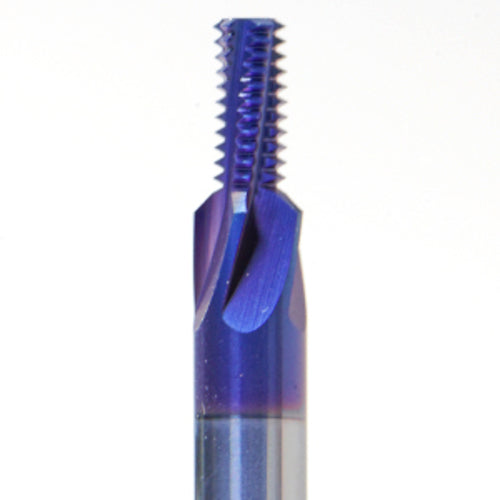

FMT 0604 E9 0.8 ISO MT8
Item #: FF5840700017
Brand: Carmex
Model #: 40700017
| Product Specifications | |
|---|---|
| Thread Size | M5 |
| Application | FAST MILL THREAD |
| Thread Pitch (TP) | 0.8 mm |
| Applicable Material | General Purpose |
| Thread Standard | ISO |
| Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 7 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 3.988 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 9.14 mm |
| Series/List # | FMT |
| Overall Length (OAL) | 2.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 5 |
| Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Corner Chamfer Width (CHW) | 10.16 mm |
| Coating | TiAlN |
| Cutting Direction (HAND) | Left Hand|Right Hand |
