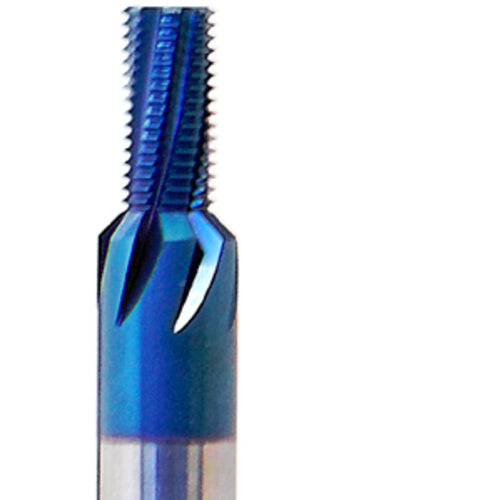

FMT 12082 G17 24 UN MT8
Item #: FF5840700020
Brand: Carmex
Model #: 40700020
| Product Specifications | |
|---|---|
| Thread Size | 3/8|11/16|5/8|9/16 |
| Application | FAST MILL THREAD |
| Threads per Inch (TPI) | 24 |
| Applicable Material | General Purpose |
| Thread Standard | UN |
| Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 8.204 mm |
| Cutting Position | Internal |
| Functional Length (LF) | 17.53 mm |
| Series/List # | FMT |
| Overall Length (OAL) | 3.3″ |
| Measurement Type | Metric |
| Flute Count (NOF) | 7 |
| Grade | MT8 |
| Coolant Supply Property (CSP) | Coolant Thru |
| Corner Chamfer Width (CHW) | 18.8 mm |
| Coating | TiAlN |
| Cutting Direction (HAND) | Left Hand|Right Hand |
