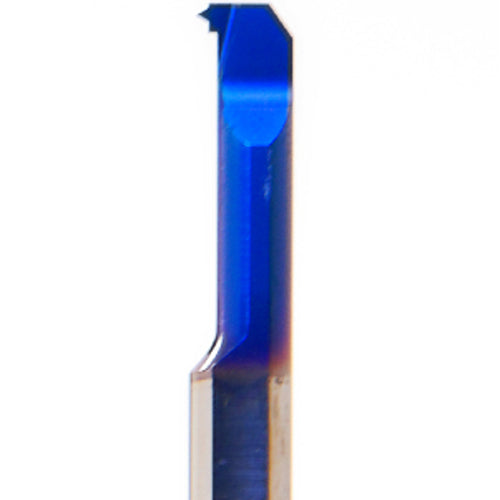

MIR 5 L15 1.0 ISO BMK
Item #: FF5870400088
Brand: Carmex
Model #: 70400088
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 01.00mm |
| Overall Length (OAL) | 50.8 mm |
| Cutting Direction (HAND) | Right Hand |
| Minimum Bore Diameter (DMIN) | 4.83 mm |
| Cutting Edge Material | Carbide |
| Grade | BMK |
| Connection Diameter Machine Side (DCONMS) | 5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Thread Angle | 60 Degrees |
| Size | H5 |
| Applicable Material | General Purpose |
| Cutting Length | 14.99 mm |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Thread Size | M6 × 1.0 |
| Measurement Type | Metric |
| Internal/External | Internal |
