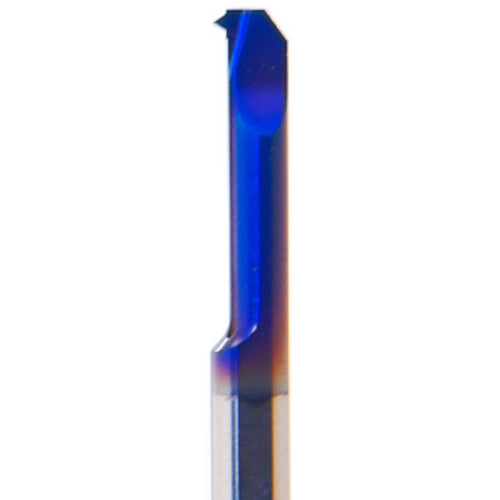

MIR 4 L15 32 UN BMK
Item #: FF5870400127
Brand: Carmex
Model #: 70400127
| Product Specifications | |
|---|---|
| Cutting Direction (HAND) | Right Hand |
| Minimum Bore Diameter (DMIN) | 4.06 mm |
| Cutting Edge Material | Carbide |
| Grade | BMK |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Threads per Inch (TPI) | 32 |
| Thread Angle | 60 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | General Purpose |
| Size | H4 |
| Coating | PVD 3x Layer Sub-Micron Coated |
| Cutting Length | 14.99 mm |
| Measurement Type | Metric |
| Thread Size | 12 – 32 |
| Overall Length (OAL) | 50.8 mm |
| Internal/External | Internal |
