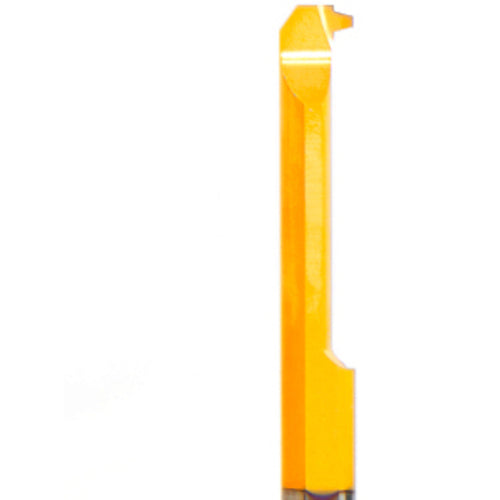

MIL 10 L45 6 ACME BXC
Item #: FF5870400251
Brand: Carmex
Model #: 70400251
| Product Specifications | |
|---|---|
| Cutting Direction (HAND) | Left Hand |
| Minimum Bore Diameter (DMIN) | 14.48 mm |
| Cutting Edge Material | Carbide |
| Grade | BXC |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Threads per Inch (TPI) | 6 |
| Thread Angle | 29 Degrees |
| Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | Stainless Steel |
| Size | H10 |
| Coating | TiN |
| Cutting Length | 44.96 mm |
| Measurement Type | Metric |
| Thread Size | 3/4 × 6 | 7/8 × 6 |
| Overall Length (OAL) | 104.14 mm |
| Internal/External | Internal |
